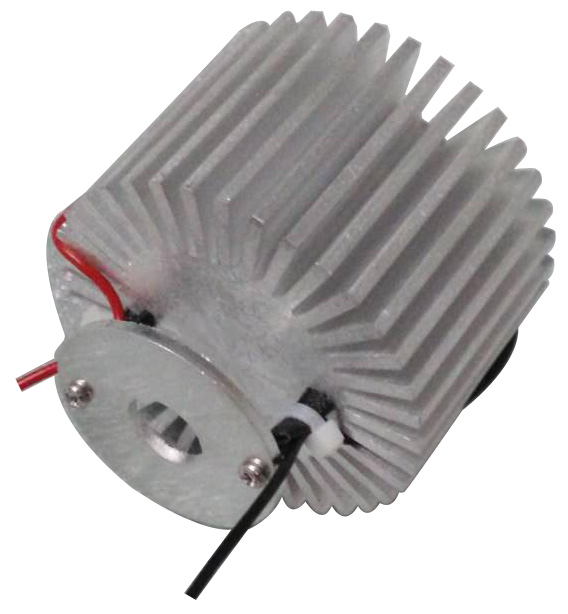

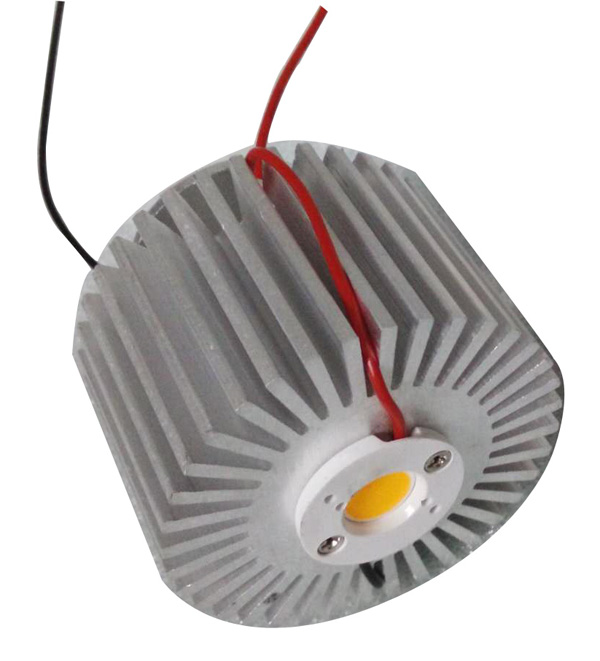

Module size: D61*H60mm, 17W, the module contains the following components
1)COB LED, Citizen part no.: CLU028-1204C4-30*M2M2-F1, voltage: 34V (31.2-36.8V), current: 500mA (constant current), 17W, 2400lm, 3000K, size: 13.5*13.5*1.4mm, diameter: 19.1mm, work at constant current, UL certification.
2)COB LED fixture, size: D25*H3.3mm, hole distance: 19.06mm, M3 screw fixing, material: flame-retardant PC.
3)Heat sink, size: 61*40mm(diameter*height).

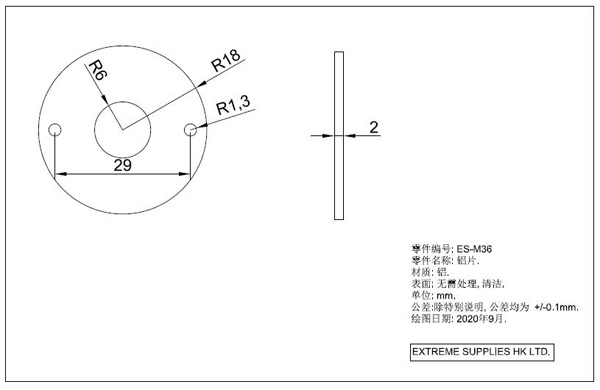

4)Aluminum plate to fix the module to fitting, size: 62*2mm(diameter*height).
5)Red and black wires, AWG 22, UL certification, 100cm long.
6)M2.5 bolts and M2.5 nuts.
